DataLakeHouse: Trino (PrestoSQL) with S3 in Kubernetes Baremetal

Trino, HiveMetStore Standalone, MinoS3, Postgres DB in Kind cluster

Based and expanded from https://github.com/joshuarobinson/trino-on-k8s and from https://joshua-robinson.medium.com/presto-powered-s3-data-warehouse-on-kubernetes-aea89d2f40e8

Main changes - Kind cluster, Minio S3, Updated Trino and changes for that, Updated Hive standalone Dockerfile, Postgres Database

What is a DataLakeHouse ?

This is a mouthful; I hope everyone has heard of DataWareHouse. That's old school now based on Hadoop and HDFS file system; which is hard to operate and maintain

The cool kid on the block is S3, and DataLake is data on S3. DataLakeHouse is data on S3, but with a SQL Table and Schema kept for that and hence data that can be queried

System Diagram

Components

  • Trino - Is a Distributed SQL Engine
  • Hive - We use only Hive Metadata Server Standalone here; This uses a DB (we use Postgres) to persist. This stores the Table structure
  • S3 - This holds the data as S3 object; The meta-structure for this is stored and kept in Hive
  • Parquet - The data in S3 is stored in Apache Parquet , binary compressed and columnar data format

DataLake

Step 0: Install Kind cluster

Create a Kind Cluster, with memory limitation

kind create cluster --config /home/alex/coding/preso_hive/kind-cluster-config.yaml

Install Minio for S3

Via helm

helm repo add minio https://charts.min.io/
helm install mino-test -f mino/values.yaml  minio/minio

Create a bucket test from the UI

kubectl port-forward svc/mino-test-minio-console 9001

Access via

http://localhost:9001/login

Step 1: Install Postgres in Kubernetes with Kubegres Operator

Postgres in Kubernetes https://www.kubegres.io/

https://www.kubegres.io/doc/getting-started.html

kubectl apply -f https://raw.githubusercontent.com/reactive-tech/kubegres/v1.19/kubegres.yaml
kubectl apply -f postgres/postgres-secret.yaml
kubectl apply -f postgres/kubegres-porstrescluster.yaml

kubectl get pods
NAME             READY   STATUS    RESTARTS   AGE
mypostgres-1-0   1/1     Running   0          22m
mypostgres-2-0   1/1     Running   0          22m
mypostgres-3-0   1/1     Running   0          22m

kubectl get secrets
NAME                              TYPE                 DATA   AGE
mino-test-minio                   Opaque               2      6m24s
mypostgres-secret                 Opaque               2      43s
sh.helm.release.v1.mino-test.v1   helm.sh/release.v1   1      6m24s

kubectl get secret mypostgres-secret -o yaml

Manually Create a DB after installing Postgres

 kubectl  exec -it mypostgres-1-0 -- /bin/sh
 psql -U postgres
 <password from the secret> postgresSuperUserPsw

postgres=# create database metadata;
CREATE DATABASE

Check if the DB is cerated

postgres=# \list
                                 List of databases
   Name    |  Owner   | Encoding |  Collate   |   Ctype    |   Access privileges
-----------+----------+----------+------------+------------+-----------------------
 metadata  | postgres | UTF8     | en_US.utf8 | en_US.utf8 |
 postgres  | postgres | UTF8     | en_US.utf8 | en_US.utf8 |
 template0 | postgres | UTF8     | en_US.utf8 | en_US.utf8 | =c/postgres          +
           |          |          |            |            | postgres=CTc/postgres
 template1 | postgres | UTF8     | en_US.utf8 | en_US.utf8 | =c/postgres          +
           |          |          |            |            | postgres=CTc/postgres

Other commands

\c metadata (connect to metadata DB)

\dt (list the tables - After Step 2.1)

Get the Postgres Service

Update it in connection string in hive/metastore-cfg.yaml and hive/hive-initschema.yaml

Step 2: Install Hive Metadata Standalone

Step 2.1

Run the hive/hive-initschema.yaml Job to initialize the schema in the Postgres table

kubectl apply -f hive/hive-initschema.yaml

and verify if the tables are created properly

 kubectl  exec -it mypostgres-1-0 -- /bin/sh
 psql -U postgres
 postgresSuperUserPsw

\list
\c metadata
\dt

                     List of relations
 Schema |             Name              | Type  |  Owner
--------+-------------------------------+-------+----------
 public | BUCKETING_COLS                | table | postgres
 public | CDS                           | table | postgres
 public | COLUMNS_V2                    | table | postgres
 public | CTLGS                         | table | postgres
 public | DATABASE_PARAMS               | table | postgres
 public | DBS                           | table | postgres
 public | DB_PRIVS                      | table | postgres
 public | DELEGATION_TOKENS             | table | postgres
 public | FUNCS                         | table | postgres
 public | FUNC_RU                       | table | postgres
 public | GLOBAL_PRIVS                  | table | postgres
 public | IDXS                          | table | postgres
 public | INDEX_PARAMS                  | table | postgres
 public | I_SCHEMA                      | table | postgres
 public | KEY_CONSTRAINTS               | table | postgres
 public | MASTER_KEYS                   | table | postgres
 public | METASTORE_DB_PROPERTIES       | table | postgres

\q

To drop table in use

SELECT
    pg_terminate_backend(pid)
FROM
    pg_stat_activity ;

drop database metadata;

Step 2.2

Create the S3 secrets for Hive

kubectl create secret generic my-s3-keys --from-literal=access-key=’minio’ --from-literal=secret-key=’minio123’

Get the Mino/S3 service

kubectl get svc
kubernetes                ClusterIP   10.96.0.1       <none>        443/TCP    7d
metastore                 ClusterIP   10.96.189.200   <none>        9083/TCP   4m8s
mino-test-minio           ClusterIP   10.96.149.113   <none>        9000/TCP   6d18h
mino-test-minio-console   ClusterIP   10.96.236.45    <none>        9001/TCP   6d18h
mino-test-minio-svc       ClusterIP   None            <none>        9000/TCP   6d18h
mypostgres                ClusterIP   None            <none>        5432/TCP   29m
mypostgres-replica        ClusterIP   None            <none>        5432/TCP   6d23h
trino                     ClusterIP   10.96.249.19    <none>        8080/TCP   63s                                       3h43m

Update in hive\metastroe-cfg.yaml for S3 and Postgres

Note especially the below property. We are pointing the metastore.warehouse.dir to the S3 location; All Schemas and tables will hereby get created in S3.

   <property>
      <name>metastore.warehouse.dir</name>
      <value>s3a://test/warehouse</value>
   </property>

NOTE Giving the service in Kind cluster give read timeouts from Hive when it is trying to write to Minio. So for Mino the endpoint IP is mentiond in metastore-cfg.yaml. This means that every time the Kind cluster restarts the Endpoints have to reset and hive redeployed for now.

$ kubectl get ep | grep mini
mino-test-minio                10.244.1.14:9000,10.244.1.15:9000,10.244.1.2:9000 + 1 more...   13d

<property>
      <name>fs.s3a.endpoint</name>
      <value>http://10.244.1.14:9000</value>
</property>

Step 2.3

First build the HiveMetastore Standalone

docker build -t hivemetastore:3.1.3.5 -f hive/Dockerfile ./hive
docker tag hivemetastore:3.1.3.5 alexcpn/hivemetastore:3.1.3.5
docker push alexcpn/hivemetastore:3.1.3.5

Step 2.4

Install/Re-insall the hive Metadata server

kubectl delete -f hive/hive-meta-store-standalone.yaml
kubectl create -f hive/hive-meta-store-standalone.yaml
kubectl apply -f hive/metastore-cfg.yaml

Step 4. Install Trino (PrestoSQL)

Configure the Postgres,S3, and Metastrore Service first in trino\trino_cfg.yaml

kubectl apply -f trino/trino_cfg.yaml
kubectl apply -f trino/trino.yaml

Port forward to see the UI

kubectl   port-forward svc/trino 8080  &

Part 2

Create a table in S3 via Trino

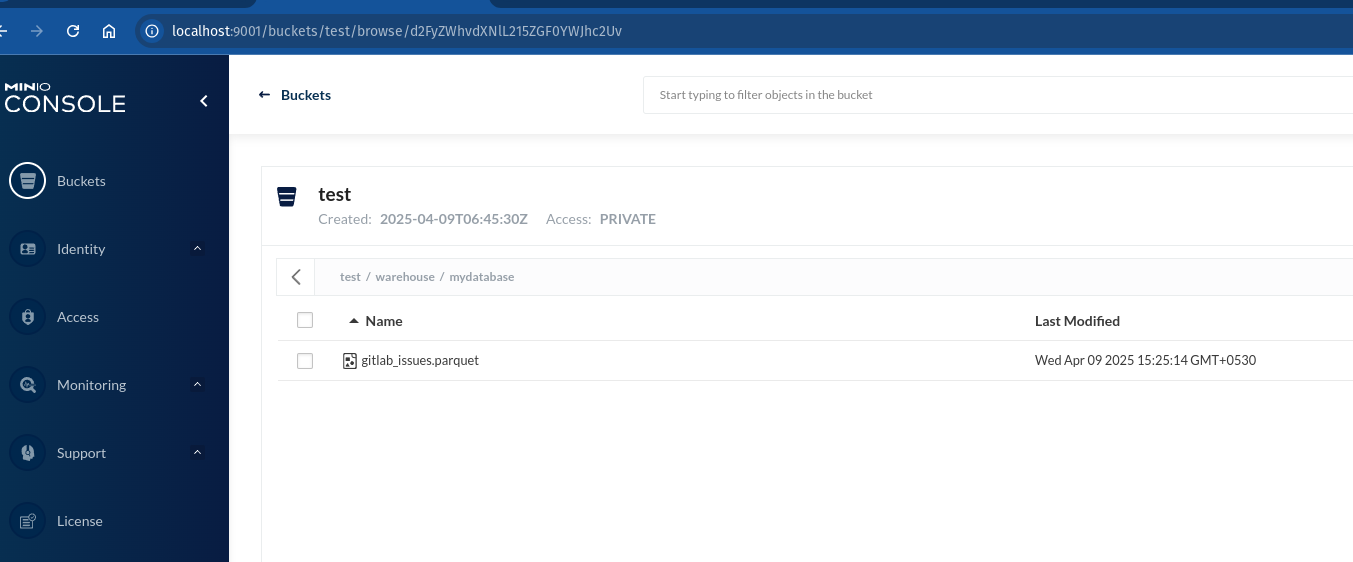

Use the Minio UI to upload the parguet files to s3

s3upload

Create the schema for the Parquet files

Access Trino CLI

Give the Service of trino in the server argument below

kubectl exec -it trino-cli -- /bin/bash
/bin/trino --server trino:8080 --catalog hive --schema default

CREATE TABLE hive.mydatabase.mytable (
    title VARCHAR,
    description VARCHAR,
    author_id BIGINT,
    assignee_id BIGINT,
    iid BIGINT,
    labels VARCHAR,
    confidential BOOLEAN,
    created_at TIMESTAMP,
    references VARCHAR,
    severity VARCHAR,
    state VARCHAR,
    project_id BIGINT,
    issue_type VARCHAR,
    rtype VARCHAR,
    updated_at TIMESTAMP,
    web_url VARCHAR,
    closed_by VARCHAR,
    closed_at TIMESTAMP
)
WITH (
    format = 'PARQUET',
    external_location = 's3a://test/warehouse/mydatabase/'
);

If the path is right, it would have got all the rows in your Parquet files

select count(*) from mydatabase.mytable;
 _col0
-------
 27748
(1 row)

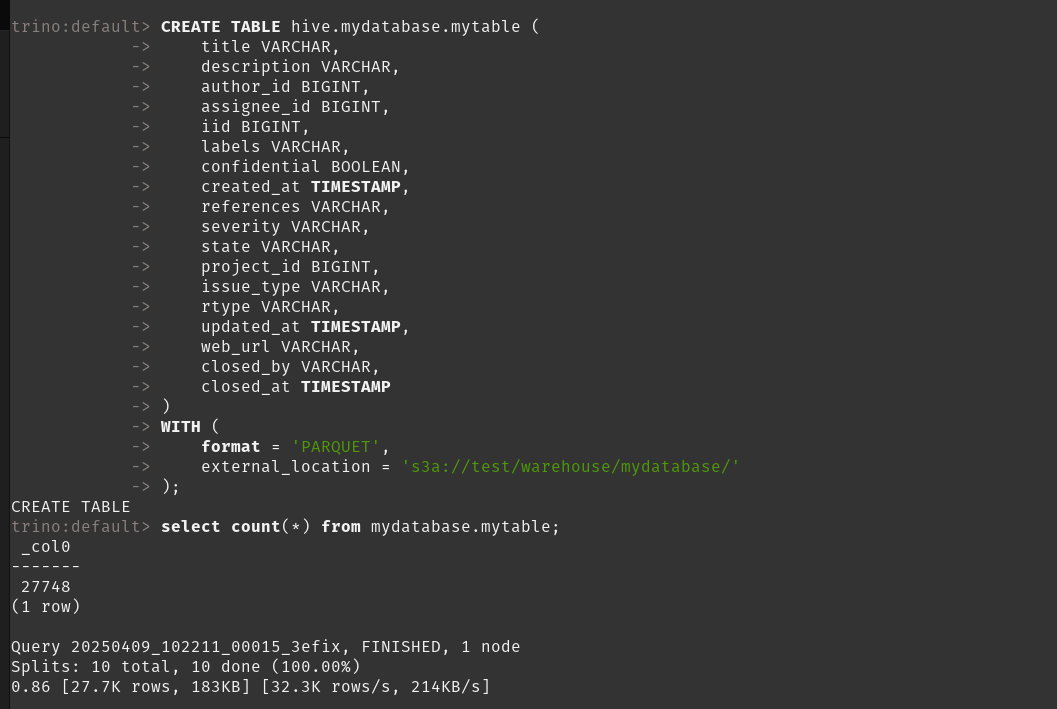

Here is a screen shot

trino
