Modify the visit interface from the source code

[summer7807]

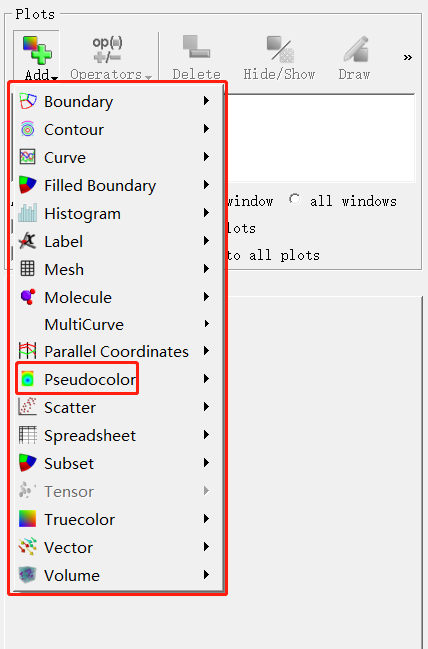

I want to delete this part of the visit interface. I only want to leave the pseudocolor function. Which part of the source code should I modify?

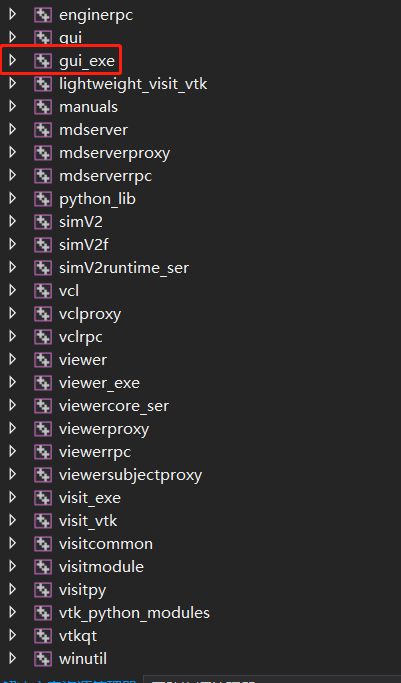

Is it in the source code file of gui_exe project or in the source code file of which project?

[biagas]

If you use VISIT_SELECTED_PLOT_PLUGINS and set it to just Pseudocolor during configure step with CMake, it will prevent other plots from being built and they won't show up in the GUI interface.

[summer7807]

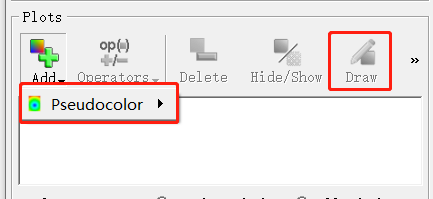

Thank you very much. I have achieved the desired result according to the method you proposed. But I still want to know what part of the source code this part of the function is in?Because I want to modify the functions of this part, for example, I want to merge Pseudocolor and Draw, Which part of the source code should I start with?

[biagas]

Are you sure you want to change VisIt's interface so drastically?
You can create you own GUI for driving VisIt via Python/PySide or through the Java client interface.

[BradWhitlock]

Maybe turning on "Auto update" is all that is desired. Brad

…

On Thu, Sep 1, 2022 at 9:40 AM Kathleen Biagas ***@***.***> wrote: Are you sure you want to change VisIt's interface so drastically? You can create you own GUI for driving VisIt via Python/PySide <http://visitusers.org/index.php?title=PySide_Recipes> or through the Java client interface <https://visit-sphinx-github-user-manual.readthedocs.io/en/develop/java_client/index.html> . — Reply to this email directly, view it on GitHub <#18051 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AAP2DBAXJN2MS2DRALFAOLTV4DMBXANCNFSM6AAAAAAQBQ3FIU> . You are receiving this because you are subscribed to this thread.Message ID: ***@***.***>
