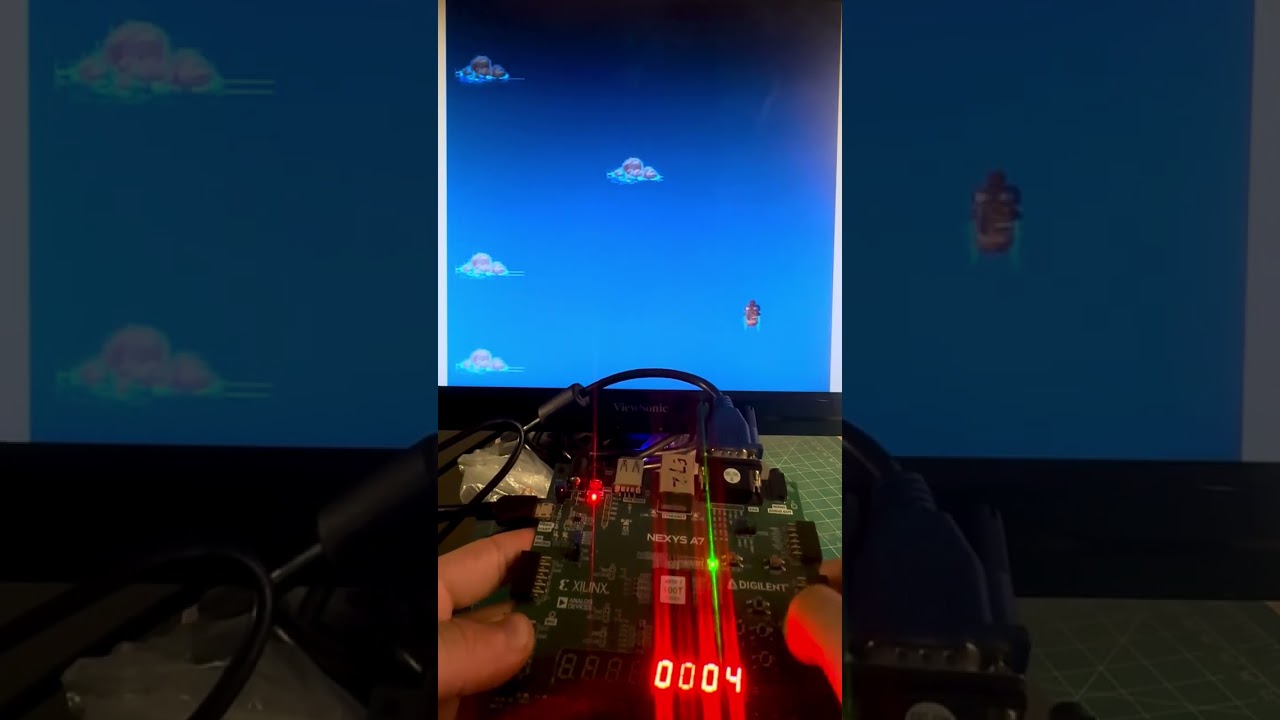

FPGA Surfers is an endless three-lane dodging game implemented entirely in Verilog and deployed on a Nexys A7 FPGA. The design generates a real-time 640×480 VGA output and handles input, animation, collision detection, and scoring fully in hardware.
- Three-lane player movement with smooth lane-to-lane sliding
- Falling obstacle generation with guaranteed open lane
- Immediate collision detection and game-over state
- Score increments based on survival time
- VGA controller
- 25 MHz pixel clock
- 640×480 @ 60 Hz timing
- Clocking
- Slow clock enable (~0.16 s) for game logic
- VGA rendering runs continuously at full frame rate
- State Machines
- Main game FSM:
START → PLAY → GAMEOVER - Movement FSM:
READY → MOVING
- Main game FSM:
- Graphics
- Sprite-based rendering using BRAM
- Multi-frame boat animation with transparency
- Collision Detection
- Bounding-box overlap checks in X and Y
- Scoring
- Displayed on Nexys A7 seven-segment display
- BtnL / BtnR: Move player left or right (debounced)
- BtnC: Restart game
- Verilog HDL
- Nexys A7 FPGA
- VGA output
- BRAM-based sprite ROMs
