Crossview Headlamp Plugin

Crossview Headlamp Plugin adds a dedicated Crossview page in Headlamp so you can install, update, uninstall, and open Crossview from the cluster UI.

Crossview project repository:

• https://github.com/crossplane-contrib/crossview

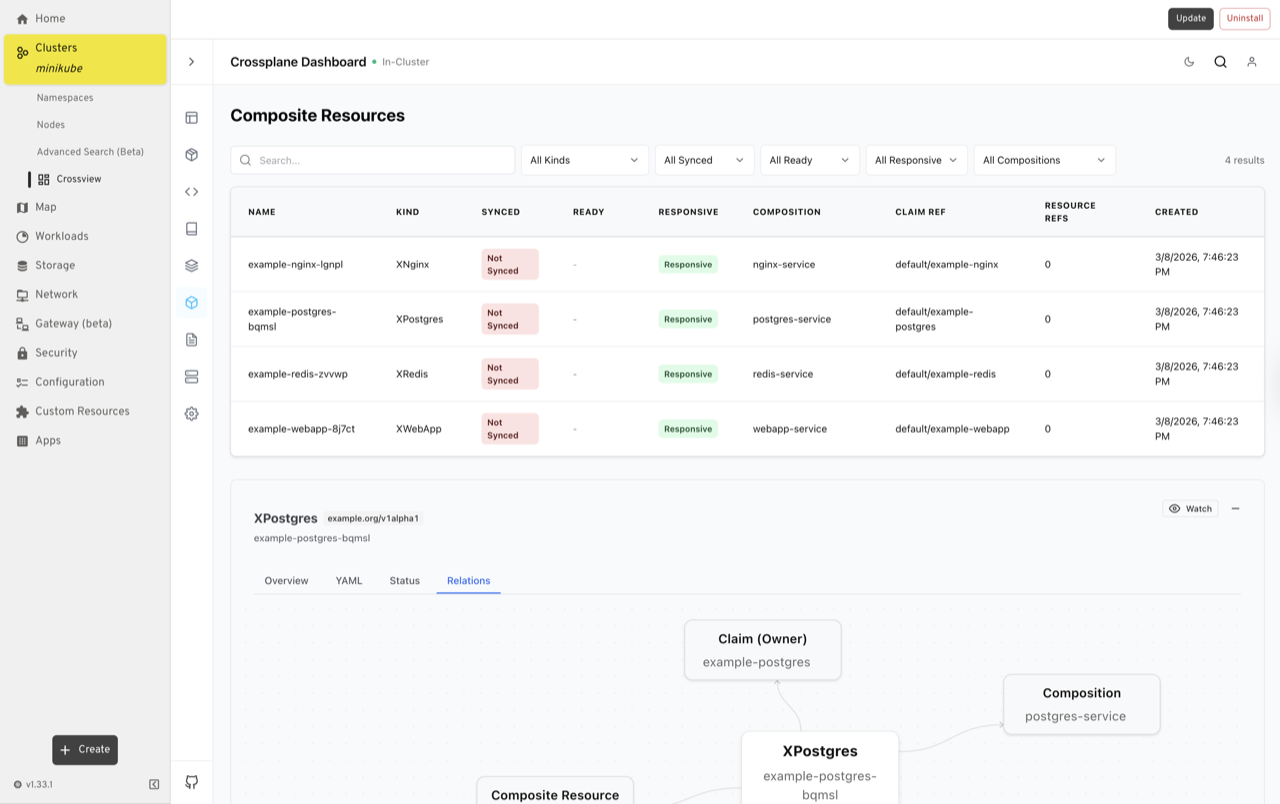

Screenshot

What This Plugin Does

This plugin adds a Crossview sidebar page under a selected cluster and provides:

• Install: Runs Helm upgrade-install for Crossview.
• Update: Prompts for a target chart version, then runs Helm upgrade-install.
• Update Helm Repo: Refreshes Helm index repositories when using repo-based charts.
• Uninstall: Removes the Crossview Helm release from the cluster.
• Open Crossview: Opens Crossview in an embedded iframe once available.
• Check Status: Reads deployment readiness from the cluster.

How It Works

When you click Install, Update, or Uninstall, the plugin creates Kubernetes resources in namespace crossview and launches a short-lived Kubernetes Job that runs Helm commands inside an alpine/helm container.

Core resources used by the plugin:

• Namespace: crossview
• ServiceAccount: crossview-helm-installer
• ClusterRoleBinding: crossview-helm-installer-admin (binds installer SA to cluster-admin)
• Job: one per action, for example crossview-helm-install-<timestamp>

Controllers, Permissions, and Responsibilities

There are two control layers involved:

1. Plugin action handlers (in Headlamp): They respond to UI clicks (Install, Update, Uninstall, Update Helm Repo) and submit Kubernetes resources/jobs.

2. Kubernetes controllers: The Kubernetes Job controller executes Helm installer jobs. After the chart is installed, normal Kubernetes controllers manage Crossview deployment resources.

Important permission note:

• The installer ServiceAccount is currently bound to cluster-admin for maximum compatibility and simplicity.
• This is convenient for development/testing and broad cluster compatibility.
• For stricter environments, replace this with least-privilege RBAC tailored to your chart operations.

Job Lifecycle and Cleanup

Each operation creates a new Job with backoffLimit: 0 and auto-cleanup enabled:

• ttlSecondsAfterFinished: 90

This means finished jobs (successful or failed) are automatically garbage-collected by Kubernetes after roughly 90 seconds.

Why jobs are used:

• Keeps Helm execution in-cluster.
• Avoids requiring local Helm binary access from Headlamp runtime.
• Provides clear logs and events for failed operations.

Chart Version Behavior

• For OCI charts (oci://...), Update Helm Repo is skipped because repo index updates are not required.
• For OCI chart version input, a leading v is normalized (for example v3.8.0-rc.3 becomes 3.8.0-rc.3) before Helm command execution.
• For repo-based charts, Update performs helm repo update before helm upgrade --install.

How To Use

1. Open Headlamp and select your cluster.
2. Go to Crossview from the sidebar.
3. If Crossview is not installed: Set Remote Helm Chart and optional Chart Version, then click Install.
4. To update: Click top Update, enter the version in the dialog, confirm.
5. To refresh repo metadata (repo-based charts only): Click Update Helm Repo.
6. To remove Crossview from cluster: Click Uninstall.

Troubleshooting

Useful commands:

kubectl -n crossview get jobs,pods,deployments
kubectl -n crossview get events --sort-by=.lastTimestamp | tail -n 100
kubectl -n crossview logs <installer-job-pod-name>

Common issues:

• Error: no repositories found: You ran repo update without configured Helm repos. This is expected for OCI-only flows.
• chart ... not found: The chart version/tag is invalid for the chosen chart reference.
• BackoffLimitExceeded on a job: Check job pod logs for the underlying Helm error.

Local Development

Build plugin:

npm run build

Copy plugin files to local Headlamp plugin directory (macOS):

mkdir -p "$HOME/Library/Application Support/Headlamp/plugins/crossview-headlamp"
cp -f dist/main.js package.json "$HOME/Library/Application Support/Headlamp/plugins/crossview-headlamp/"
cp -f dist/*.png "$HOME/Library/Application Support/Headlamp/plugins/crossview-headlamp/" 2>/dev/null || true
