Spline-Based AI Traffic Navigation in Unreal Engine 5

M.S. Thesis Project — DigiPen Institute of Technology · 2025–2026

A scalable city traffic simulation in Unreal Engine 5 supporting 100+ concurrent AI vehicles with smooth lane-change logic, dynamic spawning/despawning, and sub-frame recovery behaviours.

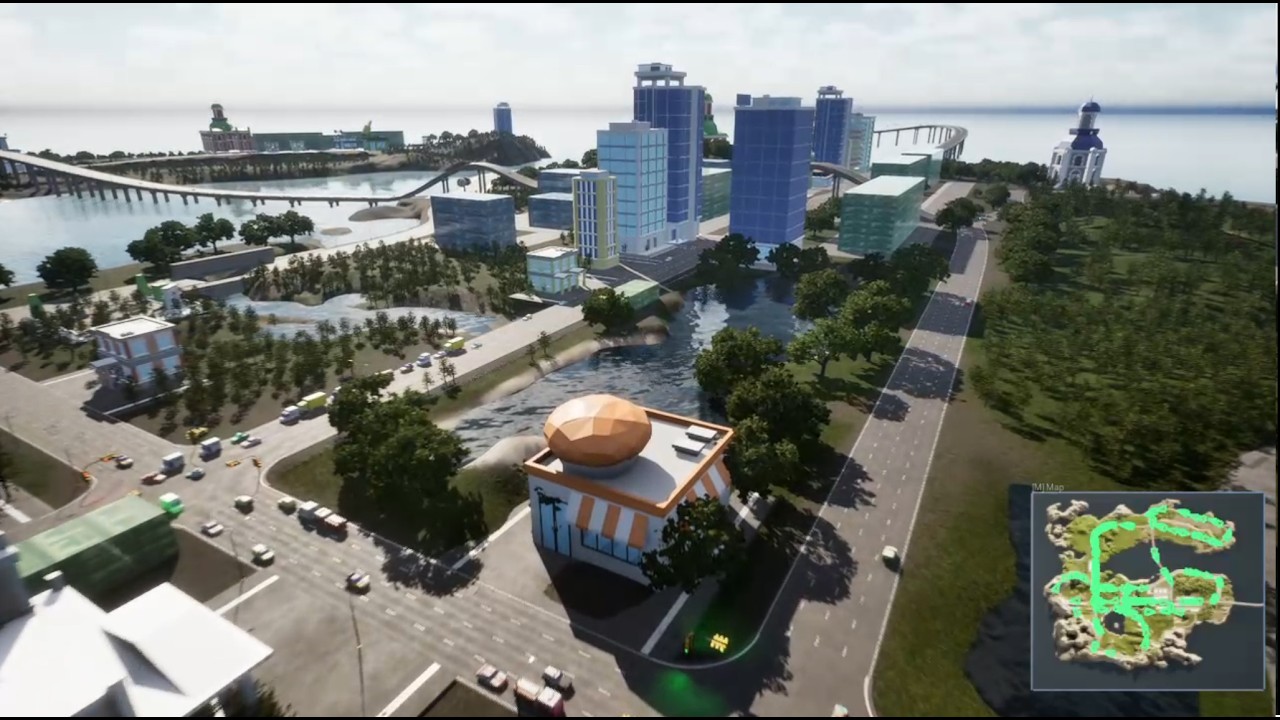

▶ Watch Demo on YouTube

---

Overview

Building a convincing city traffic simulation means solving a chain of interconnected problems at runtime: Where do roads cross? What is the shortest path from here to there? How does a vehicle smoothly follow that path, know when to signal, and recover when it gets stuck behind another car?

This project walks through two performance-critical optimisations and the steering model that ties them together:

Optimisation	Before	After
Junction Detection	O(R² × S²) brute-force	O(N) Grid Hash spatial index
A* Pathfinding	O(n²) linear scan	O((V+E) log V) binary min-heap
Startup cost (R=100, S=200)	400,000,000 operations	~1,000,000 operations (400× speedup)

---

System Architecture

The system runs across three layers at different frequencies:

Level Load   →  DetectMidSplineJunctions  →  builds road graph (nodes + edges)
On Demand    →  FindPathAStar             →  returns ordered node path
Every Tick   →  TickComponent            →  pursuit steering, speed control, lane blending

---

Optimisation 1 — Grid Hash Junction Detection

The Problem (Brute-Force O(R² × S²))

With R roads and S sample points per road, naive detection compares every sample pair across every road combination — 4 nested loops.

With R=100, S=200 → 100² × 200² = 400,000,000 distance computations at startup

The Solution (Grid Hash O(N))

Divides the world into uniform cells of side CellSize. Each sample is inserted into exactly one cell. Only the 3×3×3 neighbourhood (27 cells) is searched — all other cells are skipped with zero work.

// Insert sample into grid
FIntVector Cell(
    FMath::FloorToInt(S.Location.X / CellSize),
    FMath::FloorToInt(S.Location.Y / CellSize),
    FMath::FloorToInt(S.Location.Z / CellSize));
Grid.FindOrAdd(Cell).Add(Idx);

// Query only the 3×3×3 neighbourhood
for (int32 DX = -1; DX <= 1; ++DX)
  for (int32 DY = -1; DY <= 1; ++DY)
    for (int32 DZ = -1; DZ <= 1; ++DZ)
      if (auto* List = Grid.Find({Cell.X+DX, Cell.Y+DY, Cell.Z+DZ}))
        // compare pairs in *List only

K (average points per neighbouring cell) is constant — it does not grow as more roads are added. Total work: O(N × K) ≈ O(N).

---

Optimisation 2 — A* Binary Min-Heap

Before (O(n²))

Open set stored as plain TArray<int32>. Finding the lowest F-score required a full linear scan; removing it required TArray::Remove — both O(n), repeated once per expanded node.

After (O((V+E) log V)) with Lazy Deletion

Uses Unreal's HeapPush / HeapPop on TArray<TPair<float,int32>>. When a shorter path is found, a new entry is pushed — stale entries are discarded on pop via TSet<int32> ClosedSet in O(1).

while (OpenHeap.Num() > 0) {
    FEntry Top;
    OpenHeap.HeapPop(Top, Pred);         // O(log N)
    if (ClosedSet.Contains(Top.Value))   // discard stale
        continue;
    ClosedSet.Add(Top.Value);

    for (const auto& Edge : Edges) {
        const float NewG = GScore[Cur] + Edge.Cost;
        if (NewG < GScore.FindRef(Nb)) {
            GScore[Nb] = NewG;
            OpenHeap.HeapPush({NewG + H(Nb, Goal), Nb}, Pred); // lazy push
        }
    }
}

Operation	Before	After
Find min F-score	Linear scan O(n)	HeapPop O(log n)
Remove processed node	TArray::Remove O(n)	ClosedSet skip O(1)
Open set membership	TArray::Contains O(n)	TSet::Contains O(1)

---

Pursuit Point Steering

Each tick the vehicle steers toward a look-ahead point ahead on the path — not the nearest spline position. Look-ahead distance scales with speed:

AheadDist = max(CurrentSpeed × LookAheadTime, MinLookAheadDist)

GetPursuitPoint walks forward through the segment array, subtracting each segment's remaining length from the budget until spent, then samples the spline at the exact position — handling cross-segment look-ahead seamlessly.

---

Turn Signal & Direction Detection

ComputeTurnAtJunction classifies each upcoming junction using dot product and cross product:

const float Dot    = FVector::DotProduct(In2D, Out2D);
const float CrossZ = FVector::CrossProduct(In2D, Out2D).Z;

if      (Dot > JunctionStraightDot)  OutTurn = ETurnSignal::None;       // straight
else if (Dot < JunctionUTurnDot)     bOutUTurn = true;                  // U-turn
else    OutTurn = (CrossZ > 0.f) ? ETurnSignal::Right : ETurnSignal::Left;

Result drives both the blinker activator and the Hermite arc radius scaler for junction curve smoothing.

---

Tech Stack

• Language: C++
• Engine: Unreal Engine 5
• Key Systems: USplineComponent, TMap, TSet, TArray heap operations

---

References

• Hart et al. (1968). A formal basis for the heuristic determination of minimum cost paths. IEEE TSC.
• Coulter (1992). Implementation of the pure pursuit path tracking algorithm. CMU-RI-TR-92-01.
• Reynolds (1999). Steering behaviors for autonomous characters. GDC.
• Lefebvre & Hoppe (2006). Perfect spatial hashing. ACM TOG.

---
