WordLang

WordLang is a programming language designed for natural language-style programming. It compiles to C language and supports operations on characters, words, and sentences, along with standard programming features like expressions, variable declarations, control structures, and I/O.

---

Table of Contents

• Features
• Language Overview
  • Data Types
  • Literals
  • Variable Declarations
  • Operators
  • Expressions
  • Conditions
  • Control Structures
  • Input/Output
• Project Architecture
  • Statement
  • Conditional Statement
  • Expression
• Compiler Architecture
• Building the Compiler
• Running a WordLang Program
• Tests
• Example
  • Example Video
  • Example Program

---

Features

• Custom data types for handling language constructs (int, char, word, sentence)
• Expression support including concatenation, indexing, and subtraction
• Standard control flow: if, else if, else, while, loop
• Support for nested and general-purpose scoped blocks, including if, else if, else, while, and loop
• Symbol table stack and scoped environments with locally scoped variables automatically deleted after the scope ends
• Typed declarations and safe assignments
• Input/output commands with natural prompt formatting
• Lex and Yacc-based parsing
• Generates readable and runnable C code

---

Language Overview

Data Types

Type	Description
int	Integer values as in C
char	A single ASCII character (or empty)
word	A string without spaces
sentence	Space-separated words ending with \n

Literals

Type	Format	Example
int	number	42, 0, -1
char	'x'	'a', ''
word	string literal	"word"
sentence	^sentence^	^hello world^

Variable Declarations

Variable Naming

Variable names must start with a letter or _, followed by up to 31 letters or digits (maximum 32 characters total).

Examples

int _i1, a2345678923456789234567891234567, i3_3;
char _c1;
word w1, w2, w3;
sentence s1, s2;

Operators

Operator	Meaning
=	Assignment
+	Integer addition
-	Subtraction (or remove char/word)
#	Concatenation
:	Text indexing
== !=	Equality / Inequality
< > <= >=	Numeric (int), Lexicographic (char, word, sentence) comparison
!	Logical negation
()	Parentheses for precedence

Expressions

Example	Result	Result Type
-3	-3	int
10 - 3	7	int
-10 + 3	-7	int
"Word" : 1	'o'	char
'H' # 'i'	"Hi"	word
"Hello" # "World"	"HelloWorld"	word
^Hello World^ : 1	"World"	word
"Hi" # ^there^	^Hi there^	sentence

Conditions

Conditions are expressions that evaluate to true or false. They support all data types (char, word, sentence, int) and include:

• ==, != for equality/inequality
• <, >, <=, >= for comparisons (lexicographic for char, word, sentence; numeric for int)
• ! for logical negation

Control Structures

WordLang supports standard control flows:

• if (condition) { ... }
• else if (condition) { ... }
• else { ... }
• while (condition) { ... }
• loop (positive number) { ... } — fixed-count loop

All control structures use scoped blocks with {}. Variables declared inside a block are locally scoped and deleted when the block ends.

Input/Output

Use the input and output statements:

input "Prompt" variable;
output variable;

You can prompt using literal types ('c', "word", ^sentence^, number) or string messages.

---

Project Architecture

WordLang's compiler architecture follows an object-oriented-like approach using C structures and function dispatching. Each major component — statements, expressions, and conditionals — is modular, extensible, and handled via function sets.

Statement

typedef enum {
    LOOP_STATEMENT,
    WHILE_STATEMENT,
    CONDITIONAL_STATEMENT,
    SCOPE_STATEMENT,
    DECLARATION_STATEMENT,
    ASSIGNMENT_STATEMENT,
    OUTPUT_STATEMENT,
    INPUT_STATEMENT
} StatementType;

typedef struct Statement {
    StatementType type;
    void *data;
    struct Statement *next;
} Statement;

Conditional Statement

typedef enum {
    IF_CONDITIONAL,
    ELSE_CONDITIONAL
} ConditionalType;

typedef struct ConditionalStatement {
    ConditionalType type;
    void *data;
    struct ConditionalStatement *next;
} ConditionalStatement;

Expression

typedef enum {
    LITERAL_EXPRESSION,
    IDENTIFIER_EXPRESSION,
    UNARY_EXPRESSION,
    BINARY_EXPRESSION
} ExpressionType;

typedef struct Expression {
    ExpressionType type;
    void *data;
} Expression;

Unified Lifecycle per Module

Each module type has the following lifecycle support:

• Create — dynamic memory allocation and setup
• Execute / Evaluate — runtime logic per type
• Print — C code generation output
• Destroy — safe deallocation and cleanup

This design enables clean separation of logic, easy extensibility, and reusable code.

---

Compiler Architecture

The compiler is built using Flex and Bison to tokenize and parse WordLang code. The pipeline:

1. Lexer: Tokenizes .wl source
2. Parser: Validates syntax and builds an AST
3. CodeGen: Converts AST to readable C code
4. Runtime: Prints generated .c to stdout or a file

---

Building the Compiler

Use the provided Makefile:

make

This generates the wordlang compiler.

---

Running a WordLang Program

To compile and run a .wl file:

make run FILE=example.wl

---

Tests

Test programs cover:

• Literal expressions
• Input/output
• Indexing
• Concatenation
• Arithmetic and subtraction
• Booleans and conditions
• Control flows and scopes

Run all:

make run

---

Example

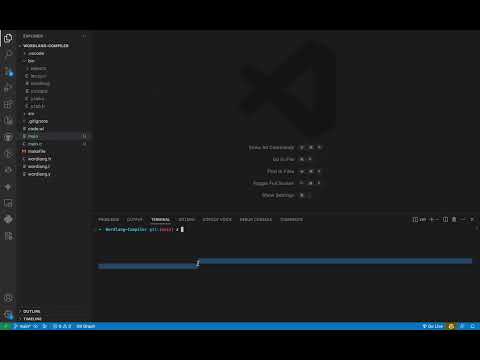

Example Video

Example Program

word w1;
sentence s1, adverb;
loop (3)
    adverb = adverb # "very";
w1 = "interesting";
s1 = ^Compilers are a^ # adverb # w1;
output s1 # "topic"; //Outputs: Compilers are a very very very interesting topic
word object, article;
char notVowel;
input ^What are you holding?^ object;
notVowel = object:0;
notVowel = notVowel - 'a' - 'e' - 'i' - 'o' - 'u';
s1 = ^You are holding^;
if (notVowel) article="a";
else article="an";
output s1 # article # object; // Outputs: You are holding {a | an}
// for example: You are holding an apple
// for example: You are holding a hammer
word last; // Flip Sentence (works only if words are distinct)
last = s1:-1;
while (s1:0 != last) {
    w1 = s1:0;
    s1 = (s1 - w1) # w1;
}
output s1; // Outputs: <object> {a | an} holding are You

char b, e, palindrome; // Find Palindrome (works only if no more than 2 equal chars)
word savWord;
palindrome = 'Y';
input ^Enter a word:^ w1; // For example: racecar
savWord = w1;
while (w1) {
    b = w1:0;
    e = w1:-1;
    if (palindrome == 'Y')
        if (e != b)
            palindrome = 'N';
    w1 = w1 - b - e;
}
if (palindrome == 'Y')
    output savWord # ^is a palindrome word^; //In example: racecar is a palindrome word
else
    output savWord # ^is not a palindrome^;

// Sort words in s1. For example: ^apple an holding are you^
s1 = ^apple an holding are you^;
int i, j, count;
count=0;
while (s1:count)
    count = count + 1;
sentence s;
while (count>1) {
    i = 0;
    loop (count-1) {
        if (s1:i > s1:(i+1)) {
            s = ^^;
            j=0;
            loop(i) {
                s = s # s1:j;
                j = j + 1;
            }
            s = s # s1:(i+1);
            s = s # s1:i;
            j = j + 2;
            loop (count-j) {
                s = s # s1:j;
                j = j + 1;
            }
            s1 = s;
        }
        i = i +1;
    }
    count = count-1;
}
output s1; // In example: ^an apple are holding You^
