J1772 EVSE firmware for ESP32 based devices.
- Hardware abstraction for device design
- Responsive web-interface
- OTA update
- Integrated energy meter
- REST API
- WebDAV
- Modbus (RTU, TCP)
- Lua scripting
- Nextion HMI
- AT commands
- Scheduler
One firmware to rule them all. Not really :-) one per device platform (ESP32, ESP32-S2...).
There is no need to compile the firmware for your EVSE design. Source code ist not hardcoded to GPIOs or other hardware design features. All code is written in ESP-IDF without additional wrapping layer like Arduino.
All configuration is specified separately form the firmware binary in a configuration file named board.yaml stored on a dedicated partition.
Check out the documentation for a full list of features and hardware examples.
Fully responsive web interface is accessible local network IP address on port 80.

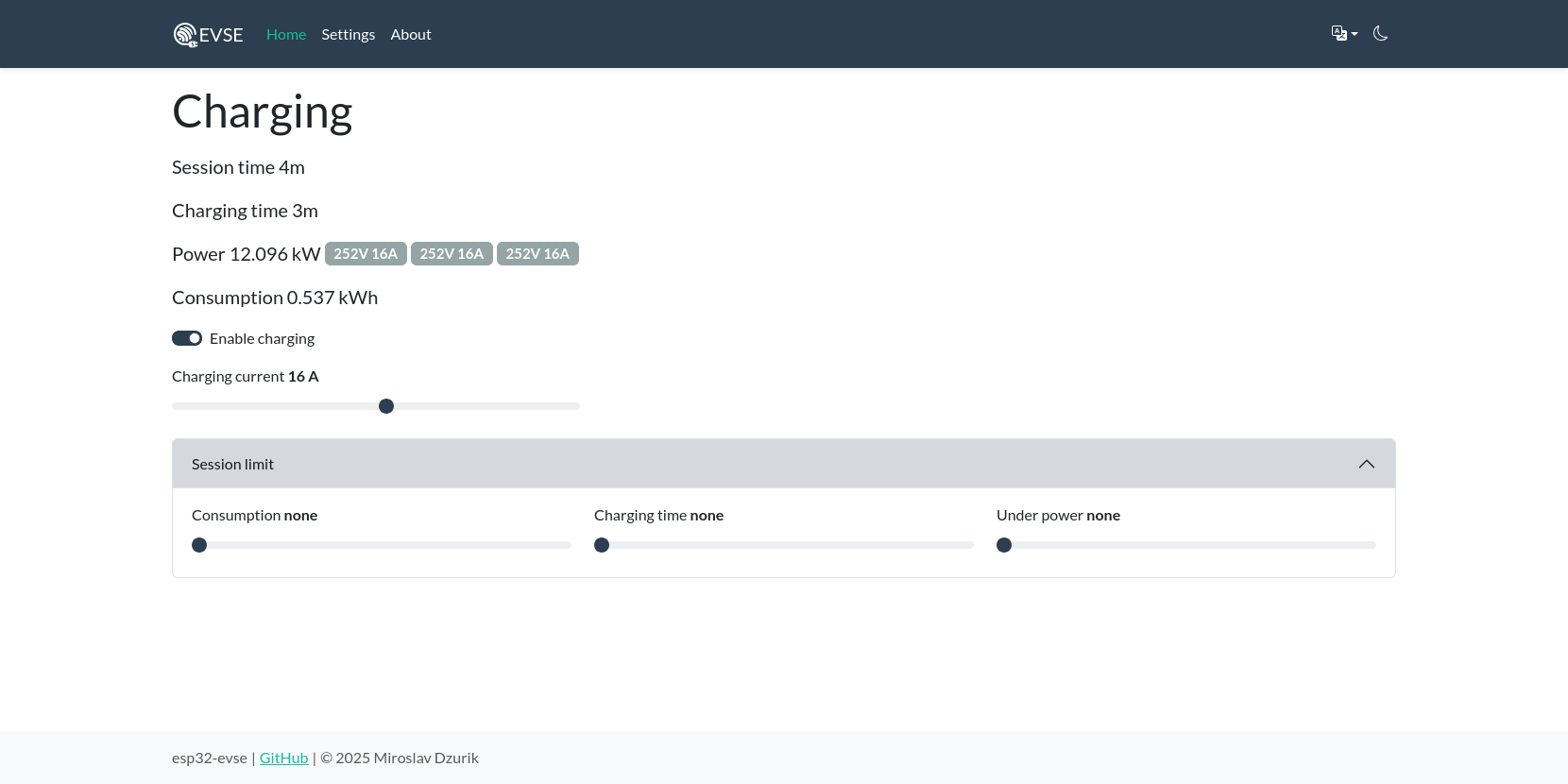

Dashboard page

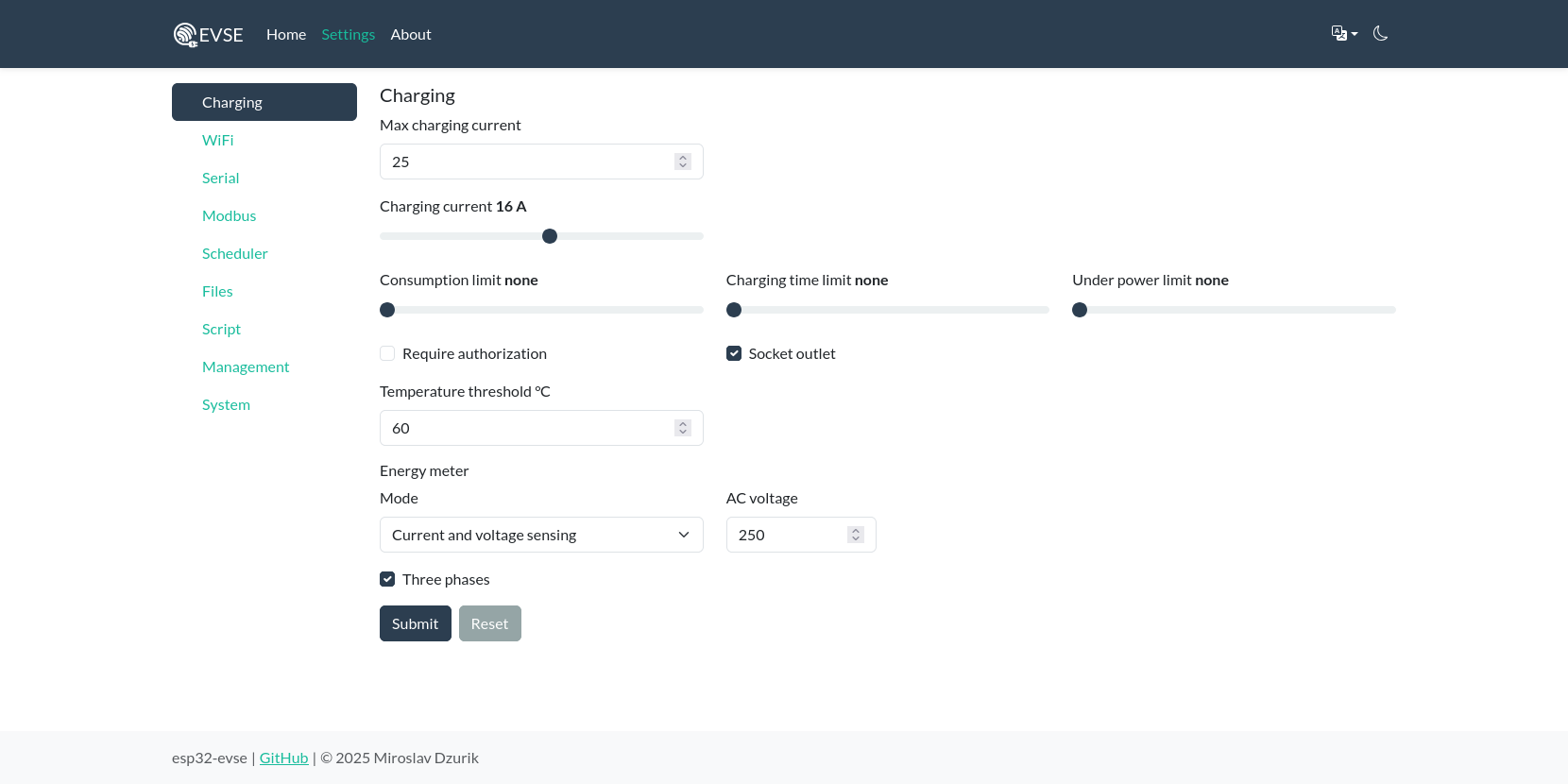

Settings page

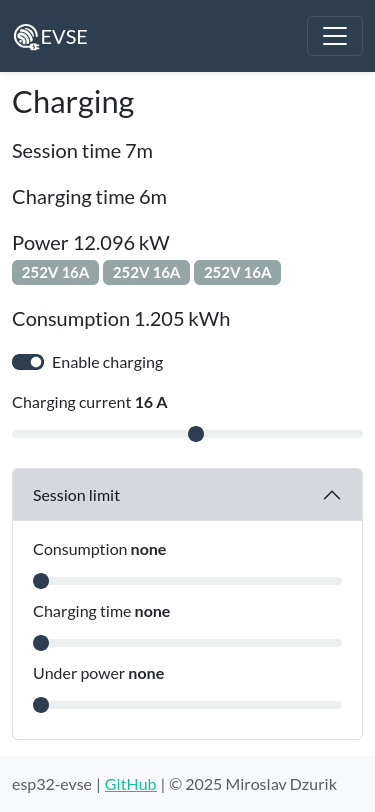

Mobile dashboard page
