spacemap

A native macOS workspacemap that shows your yabai workspace grid on demand. Press Ctrl+Space to toggle a floating overlay showing all your desktops as a 2D grid with window positions highlighted inside each cell.

Inspired by WindowMaker

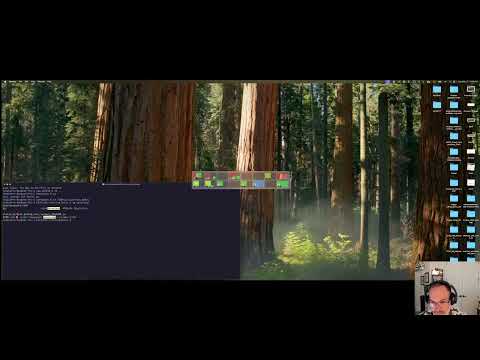

Quick Demo of Spacemap

With yabai and skhd you can set up your desktop switching behavior to be on a grid in the macOS. You just don't have any visual reference that your workspaces are layed out that way. It takes alot of mental gymnastics to keep everything streight in your head. Spacemap can help you find where you left your things.

Before you run off because I said yabai:

You do not have to disable SIP System Integrity Protection to get this setup.

Visualization of spacemap on a workspace

Here I have 4 windows open and spacemap is opened via: ctrl spacebar key sequence. It is in the middle of the screen. You can see that we are on desktop 6 and there are 4 apps open.

Desktop Screenshot

Configuration Examples

spacemap screenshot	spacemap config	skhd config
		skhdrc
		skhdrc
		skhdrc
		skhdrc

Window positions are drawn as colored rectangles inside each cell (one color per app, derived from app name). The active cell updates instantly as you switch desktops, driven by yabai's space_changed signal.

Usage

Action	Result
Ctrl+Space	Toggle HUD open/closed
Switch desktops with skhd keymaps while HUD is open	Active cell updates live
Click on a workspace	switches to workspace and closes spacemap

Run Requirements

• macOS 13+
• yabai installed at /opt/homebrew/bin/yabai and running
• skhd installed at /opt/homebrew/bin/skhd and running
• Accessibility permission (prompted on first launch). This is not the same as disabling SIP protection, which is not required.

On first launch of spacemap macOS will prompt for Accessibility permission. Grant it — spacemap needs it to monitor the global Ctrl+Space hotkey.

Accessibility Permissions Screenshot

Configuration Details

Config is read from ~/.config/spacemap/config on every HUD open (no restart needed after editing, except HOTKEY which requires a restart):

GRID_COLS=8
GRID_ROWS=2

Hotkey

HOTKEY sets the keystroke that shows/hides spacemap. Format: modifier+modifier+key. Requires a restart to take effect.

Modifier tokens	Key tokens
ctrl, cmd, alt, shift	pgdn, pgup, space, tab, return, escape, home, end, left, right, up, down, f1–f12, or any single letter/digit

#HOTKEY=ctrl+pgdn     # default (Page Down)
#HOTKEY=ctrl+space    # original default (conflicts with Cursor)
#HOTKEY=ctrl+shift+s  # example with multiple modifiers

Cell styles

CELL_STYLE controls how windows are drawn inside each cell:

Value	Description
rects	Colored rectangles scaled from real window geometry (default)
icons	App icons at each visible window's scaled position; all apps on the workspace shown as a small icon strip at the bottom
hybrid	Colored rectangles (like rects) plus a small icon strip at the bottom showing all apps on the workspace

CELL_STYLE=rects   # default
CELL_STYLE=icons
CELL_STYLE=hybrid

Install ( in 5 steps )

1. Install Pre-Requesits
2. Install spacemap
3. Grant Accessibility Permission
4. Configure skhd
5. Configure spacemap

Step 1: Install Pre-Requesits

brew install asmvik/formulae/yabai
brew install asmvik/formulae/skhd

Step 2: Install spacemap

brew tap jsheffie/tap
brew install --cask jsheffie/tap/spacemap

Step 3: Grant Accessibility Permission

Launch spacemap once to trigger the permission prompt:

open /Applications/spacemap.app

Then go to System Settings → Privacy & Security → Accessibility and enable spacemap. The Ctrl+Space hotkey activates automatically — no restart needed.

Step 4: Configure skhd

Copy the 8×2 grid keymap into your skhd config:

curl -fsSL https://raw.githubusercontent.com/jsheffie/spacemap/main/docs/skhd-configurations/skhdrc-8-by-2 \
  > ~/.config/skhd/skhdrc

Then restart skhd:

skhd --restart-service

Step 5: Configure spacemap

mkdir -p ~/.config/spacemap
cat > ~/.config/spacemap/config << 'EOF'
GRID_COLS=8
GRID_ROWS=2
CELL_STYLE=hybrid
EOF

Press Ctrl+Space to open spacemap.

Build Requirements

• Xcode Command Line Tools (xcode-select --install)

Makefile targets

Target	Description
make run	Build, install, and launch
make dev1	Uninstall; pause to remove Accessibility permission in System Settings
make dev2	Reinstall and relaunch; grant Accessibility permission when prompted
make config	Create default config file if missing
make distconfig	Overwrite config with defaults (CELL_STYLE=icons)
make permissions	Print instructions for fixing a broken hotkey
make uninstall	Kill app and remove from /Applications
make clean	Remove build artifacts

Developer notes

macOS grants Accessibility permission to the .app bundle as a whole, not the raw binary. Running the binary directly bypasses the bundle context and the permission check fails silently.

Accessibility permission is revoked on every reinstall

Every time you rebuild and reinstall, macOS revokes the Accessibility permission because the binary hash changes. The two-step dev workflow handles this:

1. make dev1 — uninstalls the app; go to System Settings → Privacy & Security → Accessibility and click − to remove spacemap
2. make dev2 — reinstalls and relaunches; grant the permission prompt that appears

make permissions prints this reminder.

The permission flow

On launch, spacemap calls AXIsProcessTrustedWithOptions(prompt: true) if not trusted, which opens System Settings to the Accessibility page. After you toggle it on, the app polls every second and registers the hotkey automatically — no restart needed.
