fix(web): wrap follow-up composer placeholder instead of clipping - #7144

Open
worflor wants to merge 1 commit into
nexu-io:mainfrom
worflor:fix/composer-follow-up-placeholder-wrap
Open

fix(web): wrap follow-up composer placeholder instead of clipping#7144
worflor wants to merge 1 commit into
nexu-io:mainfrom
worflor:fix/composer-follow-up-placeholder-wrap

Conversation

@worflor

@worflor worflor commented Aug 19, 2026

Copy link
Copy Markdown

Why

The composer's placeholder rotates through the design-toolbox next-step prompts after you've sent a message in a project. Several are full paragraphs (visualPolish is ~270 chars), and the current composer CSS clips them with an ellipsis at every realistic width:

composer width text hidden
780px 75 chars (28%)
640px 99 chars (37%)
456px 127 chars (47%)

Half the suggestion sits behind .

The wrap fix touches four spots because they interlock:

  1. apps/web/src/styles/chat.css had white-space: nowrap + text-overflow: ellipsis on the composer's carousel, inherited from the home-hero context where scenarios are one-liners. Relaxed to pre-wrap + break-word. Using pre-wrap (not normal) preserves the typewriter's trailing spaces at wrap edges so the caret doesn't jitter to the next line for one frame when a space is typed there.
  2. chat.css boosts the composer wrap's min-height to 104px only while the carousel is mounted (:has() selector), so up to four wrapped lines fit inside the composer's own box and the toolbar row underneath stays uncovered. The previous height silently assumed a single-line placeholder because that was the only case the original CSS handled.
  3. chat.css line-clamps the carousel text at four lines as a guardrail. Any future scenario copy above the current ~270-char ceiling still stays inside the wrap's 104px, so a monster prompt cannot overtake the composer chrome.
  4. PlaceholderCarousel rendered the blinking caret as a sibling flex item to the text span. That aligns fine on one line but strands the caret at a cross-axis position once text wraps. Nesting the caret inside the text span puts it in the same inline flow, so it follows the last character across wrapped lines. home-hero.css gives the caret inline-block defaults so the same element works in both the home-hero and composer contexts.

What users will see

After the first message in a project, the composer's rotating placeholder wraps to fit the composer width instead of ellipsis-truncating. The caret sits right after the last typed character on the last wrapped line. Toolbar row underneath stays uncovered.

Home-hero composer is unchanged.

Surface area

  • UI: composer placeholder rendering in apps/web
  • Default behavior change: placeholder wraps where it used to clip; composer wrap grows to 104px while the follow-up carousel is showing

Screenshots

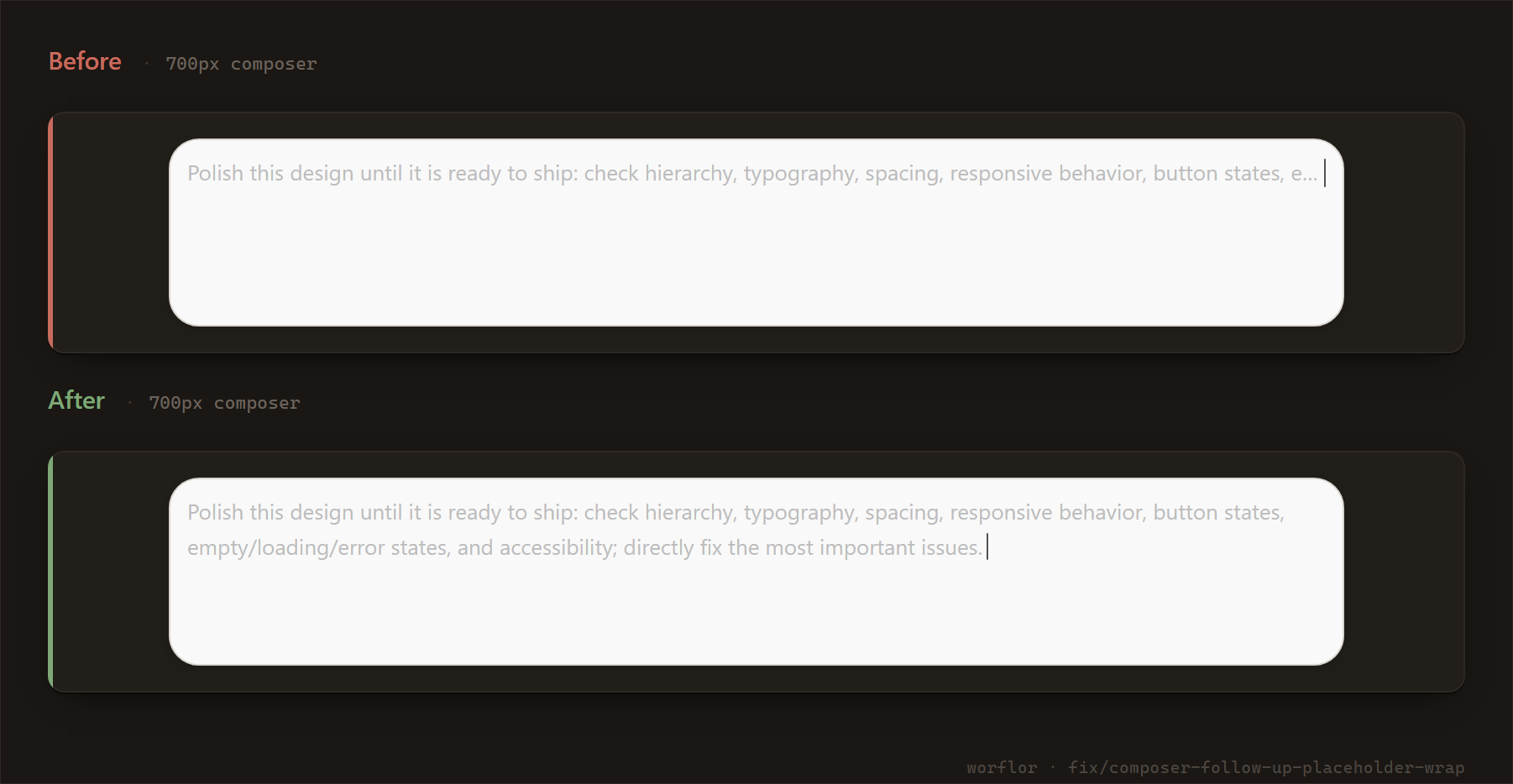

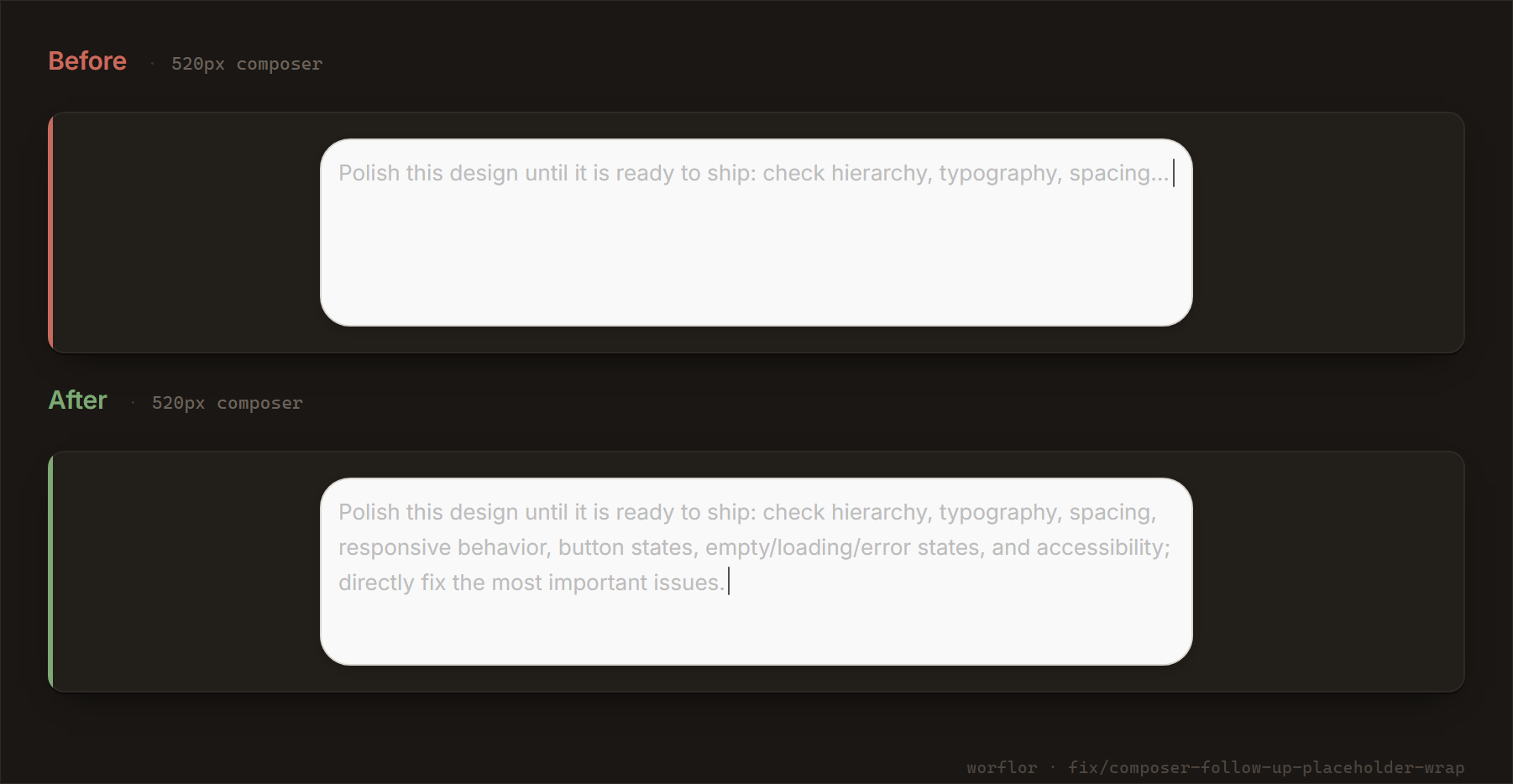

Top plate is main, bottom plate is this branch. Red marks the pre-fix, green marks the fix.

composer-carousel-wrap · 700px

composer-carousel-wrap · 520px

Bug fix verification

Three red specs, one per boundary:

  • apps/web/tests/components/home-hero/PlaceholderCarousel.caret-inline.test.tsx (Vitest, jsdom) locks the DOM shape (caret nested in the text span, not a sibling). Red on main: caret must be a descendant of the text span: expected null not to be null.
  • e2e/ui/composer-carousel-placeholder-wrap.test.ts layout spec (Playwright, Chromium) drives a real fake-agent daemon turn using the existing real-daemon-run.test.ts harness, waits for the visualPolish prompt under prefers-reduced-motion: reduce, measures the carousel at 780/640/456px viewports. Red on main at 456px: carouselHeight: 21, lineCount: 1, whiteSpace: "nowrap", textOverflow: "ellipsis", caretGapDx: -780 (caret 780px left of where the visible text ends).
  • Same file, fuzz spec hammers the CSS with baseline (~270 chars), 2x, 4x, a 600-char no-space unbreakable string, punctuation-only, and CJK text across 780/456/360px composer widths. Asserts the carousel caps at 4 lines and never overflows the wrap. Red on main: line-clamp breach at 456px [double (~540 chars)]: {"lineCount":26,...}.

All three went red on main and green on this branch.

Real-app verification: drove the fix end-to-end through the desktop shell's chat pane (fake-agent runtime, viewport 1440x1100), confirmed the composer's toolbar row stays uncovered, the caret sits after the last visible character on line 4, and the wrap's box math is clean (carouselOverflowsWrap: false, wrapHeight: 104, carouselHeight: 83).

Validation

  • pnpm --dir apps/web exec vitest run -c vitest.config.ts tests/components/home-hero/PlaceholderCarousel.caret-inline.test.tsx tests/components/home-hero/PlaceholderCarousel.paused.test.tsx tests/components/PlaceholderCarousel.test.tsx --maxWorkers=1: 7 passed
  • pnpm --dir e2e exec playwright test -c playwright.config.ts ui/composer-carousel-placeholder-wrap.test.ts --workers=1: 2 passed (~2m)
  • pnpm --filter @open-design/web typecheck: clean
  • pnpm --dir e2e exec tsc -p tsconfig.json --noEmit: clean
  • pnpm guard: one pre-existing failure unrelated to this PR (packaged-leaf boundary complaining that .github/workflows/ci.yml no longer contains its guarded tools-dev + packaged unit + focused E2E block; same failure reproduces on stock main with these edits stashed; no .github/ files touched here).

After a user sends the first message in a project, ChatPane seeds the
composer's PlaceholderCarousel with the design-toolbox next-step prompts.
Several are full paragraphs (visualPolish is ~270 chars) and the composer
CSS clipped them with white-space: nowrap + text-overflow: ellipsis,
hiding 28% of the text at 780px composer width and 47% at 456px.

Fix touches three spots in chat.css and one in PlaceholderCarousel.tsx
because the wrap, the composer's own height, and the caret alignment
all interlock:

1. chat.css relaxed the composer-scoped clip rules to pre-wrap +
   break-word. Using pre-wrap (not normal) preserves the typewriter's
   trailing spaces at wrap edges so the caret doesn't jitter to the
   next line for one frame when a space is typed there.
2. chat.css boosts the composer wrap's min-height to 104px only while
   the carousel is mounted (:has selector), so up to four wrapped
   lines fit inside the composer's own box and the toolbar row
   underneath stays uncovered. The min-height was previously sized
   for a single-line placeholder because that was the only case the
   original CSS handled.
3. chat.css line-clamps the carousel text at four lines as a
   guardrail: any future scenario copy above the current ~270-char
   ceiling still stays inside the wrap's 104px, so a monster prompt
   cannot overtake the composer chrome.
4. PlaceholderCarousel rendered the blinking caret as a sibling flex
   item to the text span. That aligns fine on one line but strands
   the caret at a cross-axis position once text wraps. Nesting the
   caret inside the text span puts it in the same inline flow, so it
   follows the last character across wrapped lines. home-hero.css
   gives the caret inline-block defaults so the same element works
   in both the home-hero and composer contexts.

Home-hero composer is unchanged. Short scenarios still render
single-line with the caret inline right after the last character.

Coverage:
- Vitest structural lock at apps/web/tests/components/home-hero/
  PlaceholderCarousel.caret-inline.test.tsx locks the DOM shape.
- Playwright layout spec at e2e/ui/composer-carousel-placeholder-wrap.test.ts
  drives a real fake-codex daemon turn, waits for visualPolish under
  prefers-reduced-motion, measures the carousel at 780/640/456px.
- Playwright fuzz spec in the same file hammers the CSS with
  baseline (~270 chars), double, quadruple, 600-char unbreakable
  string, punctuation-only, and CJK text across 780/456/360px
  composer widths. All cap at four lines with no wrap overflow.

Both went red on main and green on this branch.
@lefarcen
lefarcen requested a review from mrcfps August 19, 2026 20:07
@lefarcen lefarcen added size/L PR changes 300-700 lines risk/medium Medium risk: regular code changes type/bugfix Bug fix labels Aug 19, 2026
@lefarcen

Copy link
Copy Markdown
Contributor

Thanks @worflor — since this PR is still in draft, I'll hold off the review pass until you mark it ready for review. I've routed it to @mrcfps in the meantime.

@lefarcen

Copy link
Copy Markdown
Contributor

Heads-up: PR #7023 is also open against this area — both PRs touch apps/web/src/styles/chat.css and are aiming to fix the follow-up composer placeholder wrapping instead of clipping. You and @maxmilian might want to compare approaches; sharing this so neither pass gets duplicated.

@lefarcen lefarcen added the needs-design-review Awaiting design review (external UI change); cleared by the Odcrew App applying design-approved label Aug 19, 2026
@worflor
worflor marked this pull request as ready for review August 19, 2026 20:25
@lefarcen lefarcen added the needs-validation Runtime change detected; needs human or /explore agent validation. label Aug 19, 2026
@lefarcen

Copy link
Copy Markdown
Contributor

Thanks for marking this ready, @worflor. Since this changes visible composer behavior, I've added the QA-required label so it gets a manual pass before merge — please hold off self-merging for now; we'll loop QA in once it's merge-ready.

@mrcfps mrcfps left a comment

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

@worflor thanks for the careful wrap fix — this is a really solid bug follow-up.

I reviewed the five-file diff against the stated goal (follow-up composer placeholders wrap instead of ellipsis-clipping, caret stays on the last glyph, toolbar stays uncovered, home-hero stays single-line).

Verified:

  • PlaceholderCarousel nests the caret in the text span so it can follow wrapped glyphs, while home-hero CSS keeps nowrap + ellipsis so the landing composer does not pick up the new wrap behavior.
  • Composer-scoped pre-wrap / break-word / 4-line clamp plus the :has() 104px min-height are internally consistent with the 13px × 1.6 × 4 + padding math, and they do not leak into .home-hero__prompt-editor.
  • Tests sit on the right seams: the jsdom spec locks the DOM shape, and the Playwright file covers the real follow-up path plus a CSS fixture matrix (baseline / 2× / 4× / unbreakable / punctuation / CJK across widths).

No correctness, safety, or maintainability issues in the changed ranges. Nice work on the red-on-main / green-on-branch loop.

🔁 Powered by Looper · runner=reviewer · agent=opencode · An autonomous AI dev team for your GitHub repos.

@lefarcen

Copy link
Copy Markdown
Contributor

Thanks @worflor — closing the loop on my earlier note: @mrcfps has now approved the current head, and I don't have anything additional to add beyond that review.

The remaining sign-off/validation labels on the PR are still outstanding, so once those clear this should be in good shape.
